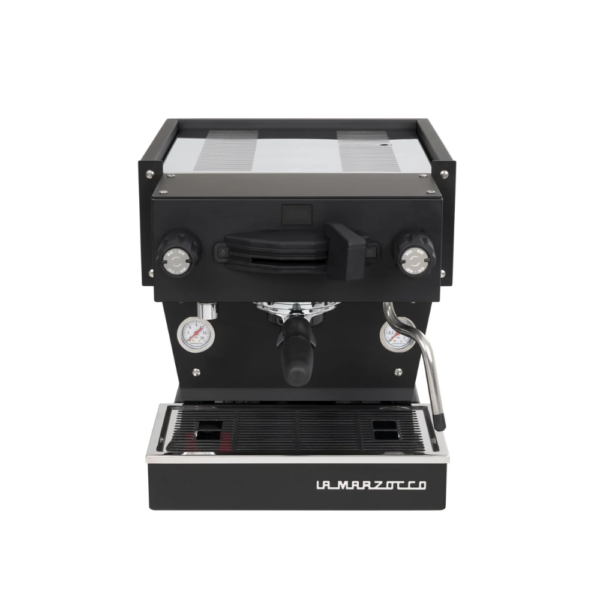

La Marzocco Linea Mini R Reimagined Espresso Machine

Commercial-Certified Performance, Connected Control & Iconic Café Design

The La Marzocco Linea Mini R (Reimagined) brings the legendary look and performance of La Marzocco’s commercial espresso machines into a compact format designed for the home, office, coffee cart, or small coffee business. Built around a dual-boiler architecture, saturated-style group head, PID temperature control, rotary pump, and internal water reservoir, the Linea Mini R is engineered for precision, consistency, and reliable high-volume brewing.

The connected design adds another level of control. Through the La Marzocco app, users can remotely access machine settings, create custom on/off schedules, adjust steam pressure intensity, monitor boiler temperature, configure pre-infusion, and review machine statistics.

With its stainless steel housing, distinctive brew paddle, integrated shot timer, 3-liter steam boiler, and professional 58 mm portafilter system, the Linea Mini R combines commercial-inspired capability with an unmistakable café aesthetic.

Key Features

Connected Espresso Machine

The Linea Mini R is one of La Marzocco’s connected espresso machines, providing additional functionality through its companion app.

Bluetooth connectivity enables remote access to features including:

• Power on/off control
• Custom on/off schedules
• Boiler temperature status and control
• Steam boiler adjustment
• Pre-infusion settings
• Machine statistics

The connected system allows you to manage important machine functions without being directly at the espresso machine.

Commercial-Certified Dual-Boiler System

The Linea Mini R uses a dual-boiler architecture with a compact 0.17-liter stainless steel brew boiler and a substantial 3-liter stainless steel steam boiler.

The brew boiler is filled through the machine’s proprietary heat-exchange system, which pre-heats incoming water before it reaches the brew boiler. This architecture is designed to support stable brewing temperatures while providing substantial steam capacity.

Saturated-Style Integrated Group Head

The Linea Mini R incorporates an integrated group head designed to provide performance similar to a saturated group head while maintaining a more compact machine footprint.

Its group head cap is derived from La Marzocco’s commercial machines, contributing to professional-style temperature stability.

PID Temperature Control

Digital temperature control provides precise brew temperature adjustment. Brew temperature can be adjusted in individual Fahrenheit-degree increments, with additional control available through the connected app.

Rotary Pump

A commercial-style rotary vane pump provides consistent pressure for espresso preparation. Brew pressure is adjustable, with 9 bar recommended for brewing.

EE Paddle Brew Control

The EE paddle brew control system provides manual control over the brewing process through the machine’s distinctive brew paddle interface.

Pre-Infusion System

The Linea Mini R includes a two-valve pre-infusion system designed for soft saturation and self-cleaning. A pre-programmed one-second pre-infusion is also included.

Pre-infusion can be configured through the connected app for additional control over extraction.

Integrated Shot Timer

An integrated shot timer provides real-time feedback during espresso extraction, helping users monitor shot duration for improved consistency.

Brew-By-Weight Compatibility

The Linea Mini R is compatible with La Marzocco’s Grind-By-Weight Scale, enabling volumetric dosing by weight and supporting greater extraction precision and repeatability.

3-Liter Steam Boiler

The large 3-liter stainless steel steam boiler provides substantial steam capacity for preparing milk-based beverages and serving multiple drinks.

Steam boiler temperature and intensity can be adjusted through the connected app.

Professional Steam Wand

The stainless steel steam wand features:

• Insulated no-burn construction
• Full articulation and rotation
• Four-hole steam tip
• Peek polymer and stainless steel tip options included

The articulated design provides flexibility when positioning a milk pitcher for steaming and texturing.

Professional Brewing System

The Linea Mini R is designed to reproduce many of the characteristics associated with commercial espresso equipment while maintaining a compact countertop footprint.

Its brewing system includes:

• Stainless steel brew boiler
• Stainless steel steam boiler
• Proprietary heat-exchange system
• Integrated group head
• PID temperature control
• Rotary vane pump
• Adjustable brew pressure
• Pre-infusion
• Integrated shot timer
• Commercial 58 mm portafilter
• Electronic solenoid-activated group head

The combination is designed for users who want professional-style espresso preparation without moving to a full commercial multi-group machine.

Controls & Connectivity

The Linea Mini R combines traditional analog-style controls with modern connected functionality.

Control / Feature	Details
Brew Control	EE paddle
Temperature Control	Digital control via analog-style dial
App Connectivity	Bluetooth
Remote Power	Yes
Custom Schedules	Yes
Boiler Temperature Control	Yes
Steam Boiler Adjustment	Yes, through connected app
Pre-Infusion	Yes
Shot Timer	Integrated
On/Off Timer	Via La Marzocco app
Flow Profiling	No
Volumetric Dosing	Yes, with La Marzocco Grind-By-Weight Scale
Pressure Gauges	2
Pressure Gauge Functions	Pump pressure and steam boiler pressure
Display	N/A

Portafilters & Brewing Accessories

The Linea Mini R includes a professional 58 mm portafilter system with interchangeable single- and double-spouted configurations.

Included brewing accessories include:

• Convertible bottomless portafilter
• Single-spouted attachment
• Double-spouted attachment
• 7 g basket
• 14 g basket
• 17 g basket
• 21 g basket
• Blind basket
• La Marzocco convex stainless steel tamper

Design & Construction

The Linea Mini R retains the unmistakable aesthetic of La Marzocco’s classic commercial machines while reducing the overall footprint for smaller environments.

Its construction includes:

• Stainless steel housing
• Stainless steel drip tray
• Stainless steel drip tray cover
• Stainless steel cup warming tray
• Commercial-inspired group head
• Distinctive brew paddle
• Analog-style control interface

The result is a machine designed to function as both a serious espresso tool and a visual centerpiece for a home coffee bar.

Specifications

Feature	Linea Mini R
Brand	La Marzocco
Model	Linea Mini R (Reimagined)
Machine Type	Dual-boiler espresso machine
Commercial Certification	NSF, ETL
Application	Home, office, or business
Housing Material	Stainless steel
Height	15 in
Width	14 in
Depth	21 in
Weight	66 lb
Maximum Wattage	1620 W
Voltage	120V
Plug	Standard 15 amp
Cord Length	5 ft

Boiler System

Boiler	Specification
Brew Boiler	Stainless steel
Brew Boiler Capacity	0.17 L / 5.75 oz
Brew Boiler Filling	Via HX system
Steam Boiler	Stainless steel
Steam Boiler Capacity	3 L / 101.44 oz
Automatic Boiler Filling	Yes
Boiler Insulation	Yes
Steam Boiler Power	1620 W
Warm-Up Time	Approximately 15 minutes
Heating Element Access	Yes

Water System

Feature	Specification
Water Supply	Reservoir or plumbed
Plumbing Kit	Optional
Reservoir Capacity	2.5 L / 84.53 oz
Reservoir Material	BPA-free plastic
Reservoir	Removable
Low Water Shutoff	Yes
Drip Tray Capacity	2.13 L / 72 oz
Drainable Drip Tray	Yes

Pump & Pressure

Feature	Specification
Pump Type	Rotary vane
Recommended Brew Pressure	9 bar
Brew Pressure	Adjustable
Pressure Gauges	2
Gauge Functions	Pump pressure & steam boiler pressure

Group Head & Portafilters

Feature	Specification
Group Head	Saturated, electronic solenoid activated
Group Type	Integrated
Portafilter Size	Commercial 58 mm
Portafilters Included	1 convertible portafilter
Spout Configuration	Single and double spout
Baskets	7 g, 14 g, 17 g, 21 g, blind
Tamper	La Marzocco stainless steel convex tamper
Group Maintenance	Cafetto EVO

Steam System

Feature	Specification
Steam Wand	Stainless steel
Insulation	No-burn
Wand Movement	Articulating, full rotation
Steam Tip	4-hole
Optional Steam Tips	No
Included Tip Materials	Peek polymer & stainless steel

Drip Tray & Cup Warming

The Linea Mini R includes a stainless steel cup warming tray and a removable, drainable drip tray.

Feature	Specification
Drip Tray Material	Stainless steel / plastic
Drip Tray Cover	Stainless steel
Capacity	2.13 L / 72 oz
Drainable	Yes
Cup Warming Tray	Stainless steel

What’s Included

The Linea Mini R package includes:

• Convertible bottomless portafilter with single- and double-spouted attachments
• 7 g basket
• 14 g basket
• 17 g basket
• 21 g basket
• Blind basket
• La Marzocco convex stainless steel tamper
• 12 oz steam pitcher
• Peek polymer steam wand tip
• Stainless steel steam wand tip
• Puro Caf cleaning detergent
• Connected Board for applicable serial numbers
• La Marzocco water test kit

Connected Board note: The supplied information specifies compatibility for serial numbers LM015906 and above.

Warranty

Use	Warranty
Home Use	2 years
Commercial Use	1 year
Commercial Warranty Details	1-year parts / 90-day labor
Home Warranty Provider	Clive Coffee and La Marzocco
Commercial Warranty Provider	Clive Coffee
Manufacturer Warranty	2 years

Ideal Applications

The La Marzocco Linea Mini R is well suited for:

• Home espresso bars
• Serious home baristas
• Coffee enthusiasts seeking commercial-style equipment
• Small coffee shops
• Coffee carts
• Offices
• Boutique hospitality environments
• Users who value both espresso performance and classic café aesthetics

Why Choose the La Marzocco Linea Mini R?

The Linea Mini R brings La Marzocco’s iconic commercial-inspired design and engineering into a compact format. Its combination of a 3-liter steam boiler, PID temperature control, rotary pump, heat-exchange system, integrated group head, pre-infusion, and connected app functionality gives users extensive control over the brewing experience.

The connected platform adds modern convenience to a machine with distinctly traditional café character, while the professional 58 mm portafilter system, integrated shot timer, adjustable pressure, and Brew-By-Weight compatibility provide additional tools for precise espresso preparation.

For users who want their espresso machine to be both a serious brewing instrument and the centerpiece of a café-inspired environment, the Linea Mini R delivers a distinctive combination of commercial capability, connected control, and iconic La Marzocco design.
